The SBox Ghost Scanner is a powerful spirit box that combines radio frequency sweep scanning with recording capabilities, designed specifically for paranormal research. Packed with a variety of additional features, the SBox enhances your investigations, making them easier and more efficient while ensuring high-quality documentation of your findings.

The Original SBox FEATURES

• Automatic FM/AM radio sweep
• Record & playback radio sweep and EVP audio
• Adjustable sweep speed control
• Great for use with the Estes Method
• Rechargeable battery and long life
• SD card port for recording (32GB Max)
• Forward or reverse sweep direction
• Loud, amplified speaker (10x power) and wired headphone port
• Backlit display and built-in flashlight
• Auto-play for burst sessions

with added SBox 2 Features

• Wireless headphone connection (Bluetooth)
• Antenna cutoff option
• Random station scanning option
• Faster and slower speeds
• Single station select

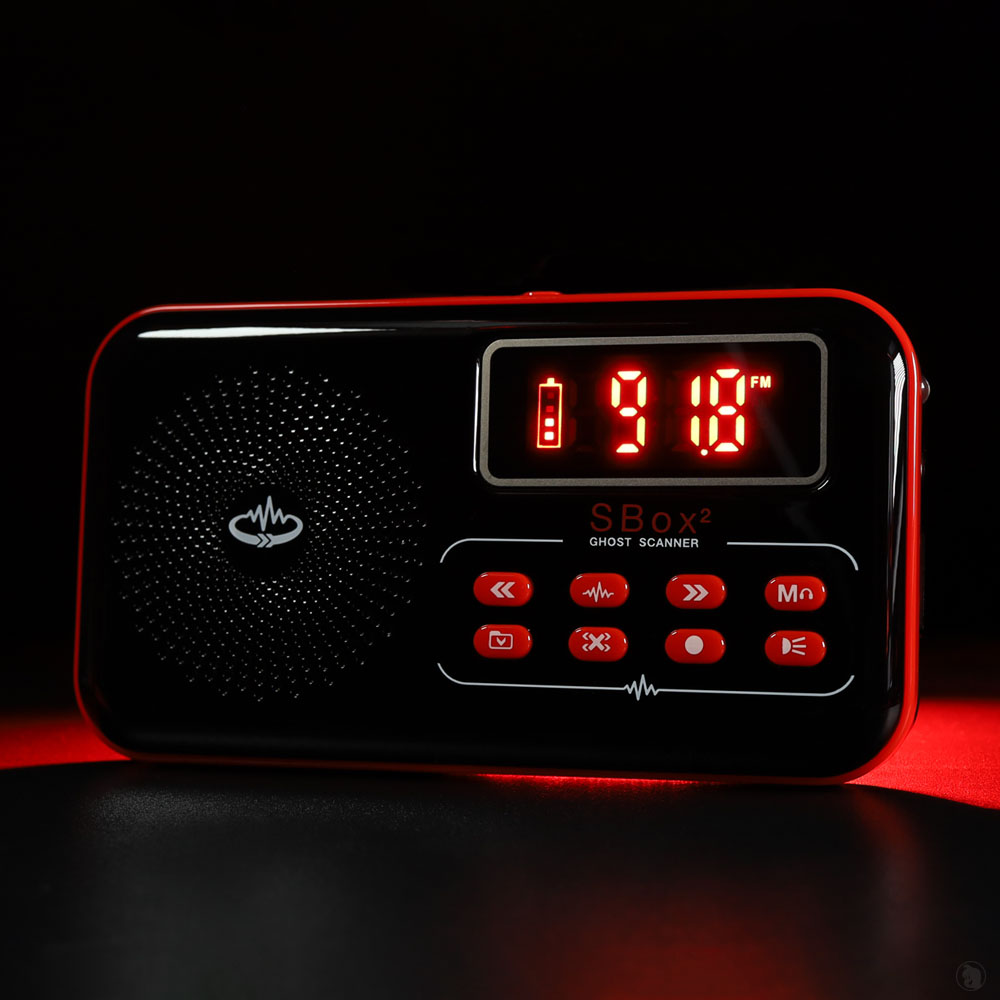

Introducing the SBox2, a spirit box designed exclusively for paranormal investigations and ghost hunts. This compact and user-friendly device enables communication with spiritual entities by scanning radio frequencies across AM and FM bands. The resulting white noise, according to popular theories, provides the energy entities need to communicate. As you listen, you may hear voices or sounds emerge from the static, representing attempts at contact from the other side.

The SBox lets you conduct FM or AM band sweeps for potential spirit communication, giving you full control over the sweep speed and direction, whether forward or backward. Now, with the NEW SBox 2 model, you gain even greater control and flexibility, enhancing your paranormal investigation experience.

Capture your ghost box sessions with a direct line recording and play them back using the powerful built-in speaker. You also have the option to record standard EVP audio without the radio sweep. Both recording options are saved directly to an SD card (available as an optional add-on). You can either playback your recordings on the device or transfer the SD card to your computer or any compatible device.

Note: A Micro SD card is required for recording and playback. Cards can be added to your purchase above. The maximum supported size is 32GB, providing ample space for many hours of investigations.

Go wireless with the NEW SBox 2! Now you can connect to your spirit box without the hassle of wires or adapters. SBox 2 features Bluetooth capability, allowing you to listen through wireless headphones or a remote speaker. Whether you're monitoring from another room or simply prefer the freedom of being untethered, SBox 2 is the only device that lets you do it with ease. Just pair your favorite Bluetooth headphones and start your investigation—no adapters needed!

Tired of broadcast radio interference? We’ve got you covered. With a single button press, you can instantly bypass the antenna circuit, giving you a cleaner, uninterrupted spirit communication experience.

By popular demand, we’ve introduced the option to scan frequencies at random. Instead of scanning forward or backward through stations, you can now randomly hop between them for a fresh approach to spirit communication.

Additionally, you can now lock onto a specific station. If you're getting consistent results on a certain frequency, simply stay on it for as long as you like to enhance your investigation.

The built-in battery provides up to 6 hours of continuous use on a single charge, making it perfect for extended investigations. Easily recharge it with any USB charger, including mobile USB battery packs for a quick boost on the go. For unlimited use, simply plug it into a wall outlet or carry it with a battery pack. It's convenient, quick, and eliminates the need for disposable batteries, saving you money in the long run. Note: Certain features may reduce battery life. Check the specs for full details.

Whether you're conducting extended sessions or quick "burst" questions, the SBox has you covered. With a single button press during recording, SBox instantly plays back the last recorded file. For burst sessions, simply ask your question, wait for a response, and press record again to hear the playback. By default, the device will loop the recording for continuous analysis, allowing you to review it as many times as you need—all with just one button press.

No external speaker needed—the SBox comes with a powerful, amplified built-in speaker designed to be heard clearly, even in large rooms. If you need even more volume, use the audio output jack to connect to an external speaker or headphones for private sessions. Want a discreet investigation without disturbing others? Just grab a pair of headphones. Plus, the SBox doubles as a Bluetooth speaker when paired with any Bluetooth-enabled device, offering even more versatility.

The SBox features a red LCD lighted display, specifically chosen to help preserve your night vision during investigations. The display shows important information such as battery life and device status, which changes depending on the mode you're using. Additionally, the SBox includes a built-in white LED flashlight, perfect for when you need a bit of extra light during your investigation.

Technical Specs

• Rechargeable and replaceable long life lithium ion battery
• 3-Watt (3,000mW) amplified speaker built in (over 10x the power in popular spirit boxes)
• FM scan range: 87.5 - 108.0 / AM scan range: 522 - 1710
• Adjustable sweep speed control - 4 different speeds +1 bonus speed while recording with firmware version 1.3 or higher (Speed 1 = ~100ms | Speed 2 = ~200ms | Speed 3 = ~300ms | Speed 4 = ~400ms | Bonus Speed 1 while recording = ~500ms)
• Red LCD display to preserve night vision
• Scratch resistant coating
• Precision volume control wheel
• Micro SD card slot for recording and playback (32GB max)
• Onboard white LED flashlight
• Headphone port USB data port for file transfer/sharing
• USB charging port
• Antenna extends to 15" and folds back into place (4" when retracted)
• Wrist strap with connected stand
• USB data and charging cables included

NEW SBox 2 Features

• SBox 2 still has 4 speeds, but the slowest is slower and the fastest is faster than the previous model
• Antenna cutoff option: Engage/Disengage button
• Bluetooth wireless headphone connection
• Station select
• Still has a hardwire headphone port. So, you can use headphones wired or wireless via Bluetooth

Battery Life

The built in battery lasts up to 6 hours of continuous use on a single charge. It can be recharged using any USB charger including a mobile USB battery pack for a quick boost. Carry it with a battery pack or plug it into a wall outlet for unlimited use. It's easy, quick and saves money on batteries. Recording function and speaker volume does drain battery depending on settings: louder drains more power.

NOTE: We suggest taking the battery out of the SBox when storing. Since the flashlight is always in a 'standby mode' even when the unit is off, it does drain the battery very slightly over time. So, if SBox is stored for some time in a case, even with a full charge, it will come out with a drained battery.

Battery Tests:

6 hours in standby (no scanning) 6 hours scanning using headphones 4.5 hours scanning with speaker at volume 15 3.75 hours scanning and recording with speaker at volume 15 3.75 hours scanning with speaker volume at 25

QUICK START GUIDE

ON FIRST USE: Initiate Battery
If it won't turn on upon first use: Pull the little plastic tab located near the battery compartment on the back. This is to protect the battery during storage and shipping.

• Charge before use. (see charging instructions)
• Turn device on using ON/OFF slider button (2).
• Press SCAN (13) to begin FM Scan Forward.
• Press RECORD (16) to record (requires SD card). Press RECORD (16) again to stop recording.
• Turn device off using ON/OFF slider button (2).

Includes

• SBox
• USB charger cable (white)
• USB data cable (black)
• Wrist strap with stand
• Printed manual

DIRECTIONS

1 Antenna
2 On/Off
3 Volume
4 Micro SD Card Slot (32GB max)
5 Display
6 Flashlight
7 Headphone Port
8 USB Port
9 Charging/Aux Input Port
10 Speaker
11 Scan Reverse or Scan Slower (SBox 2: Also used for Station Selection DOWN)
12 Loop / Play All / Version (SBox 1)
13 Scan
14 Delete File (SBox 2: Also used for Random Scanning and Antenna bypass)
15 Scan Forward or Scan Faster (SBox 2: Also used for Station Selection UP)
16 Record
17 Modes (SBox 2: Also used for Bluetooth pairing)
18 Flashlight

POWER & CHARGING

NOTE: This product includes a safety tab on the battery that is sticking out of the battery compartment. Pull this tab off the the battery connectors to activate the battery. This tab is to ensure the battery does not make connection or drain during shipment and storage.

SBox is powered by a rechargeable battery. To charge the device use the provided USB charging cable (WHITE) to connect to a USB power source. This could be a computer with a USB power, USB power strip or USB battery pack for quick mobile power. When charging the flashlight LED will show red and will turn off once complete. To plug the device into a AC power outlet, you will need to use a USB to AC power adapter (not provided). When SBox is powered on you will see a battery icon to the left of the display indicating battery life.

NOTE: We suggest taking the battery out of the SBox when storing. Since the flashlight is always in a 'standby mode' even when the unit is off, it does drain the battery very slightly over time. Given that, if SBox is stored away with a full charge for some time it will come out with a drained battery.

MODES

To change modes press the MODE button (17). When switching modes you will hear a verbal queue to indicate each mode as follows. It may take a moment to switch modes.

• SCANNING FM
  This mode is used for conducting spirit box sweep sessions using the FM band.
• SCANNING AM
  This mode is used for conducting spirit box sweep sessions using the AM band.
• LINE IN
  This mode allows you to plug in an audio device to use the SBox as an external wired speaker. Use the provided 3.5 audio-to-microUSB cable to connect another compatible audio device.
• BLUETOOTH (Mode removed for SBox 2)
  This mode allows you to connect a bluetooth audio device to use the SBox as an external wireless speaker.
• PLAYBACK
  This mode allows you to play recorded spirit box sessions and other audio files on the memory card or from a USB drive.

SCANNING

Press SCAN (13) to start and stop the sweep.

To change sweep direction: while the scan is stopped hold REVERSE (11) for 2 seconds to sweep in the reverse direction or hold FORWARD (15) to sweep forward. If a sweep is already active you must press SCAN (13) again to stop the current sweep and resume in the desired direction.

To change sweep speed (available only on firmware V1.3): press FORWARD (15) to make the scan faster or REVERSE (11) to make the scan slower. You will see a number display quickly on the screen "1-4". This indicates the speed where 1 is the slowest and 4 is the fastest. You can do this while sweeping or even when it's paused.

Press RECORD (16) to record sweep audio.

RECORD

To record sweep or EVP audio you must first insert a micro SD card into the port at the top of the device (4). Make sure to face it in the proper direction to insert properly. It will click into place.

NOTE: Maximum size for the SD card is 32GB. Anything larger and it likely will not record.

To record radio sweep audio, first start the sweep in the direction you prefer. Once the sweep has begun press RECORD (16). A ‘SD’ icon will appear on the screen to indicate it is recording to the SD card.

To stop recording press RECORD (16) again. Stop recording after each session to save the file properly. As soon as you stop the recording it will play the latest recording for review.

While recording you can start, pause or change direction on the sweep as you wish.

To record EVPs or voice only press MODE (17) to ‘Playback’ mode then press record. This will begin recording from a built-in microphone. You cannot use the radio sweep in this mode.

To access recorded files you can do either:

• Remove SD card from the memory slot (4) and insert it into a computer using any micro SD card reader.
• Plug SBox directly into a computer via the USB data port (8) using the provided USB cable (normal size USB on both ends).

PLAYBACK

To play audio files from the SD card press MODE (17) to ‘Playback’.

Press FORWARD (15) or BACK (11) to select a file. Sbox will play the audio file. Each file is indicated by a number in sequence.

Press SCAN (13) again to pause playback.

Press FILE (12) to loop play the current audio file. Press FILE again to play continue through playing all files.

FILE MANAGEMENT

To transfer or view the files on the SBox SD card plug the USB data cable (BLACK) into a computer. The SBox display will show 'PC' and a drive should show active on your computer momentarily.

To delete files, we suggest plugging the SBox into your computer or inserting the SD card into your computer. Though you can manage the files on the SBox, it's so much easier to do on the computer. If your computer doesn't have an SD slot you can get a USB card reader adapter that the SD card goes into.

To delete recorded files on the SBox directly press the MODE (17) button to get into 'Playback' mode. Press FORWARD (15) or BACK (11) until you get to the desired file. Each file is numbered sequentially. Make sure to listen to the file to note which one you want to delete to ensure you don't delete something you want to keep. To delete the file you're listing to press 'X' (14). This will delete the file PERMANENTLY. So, be sure you've got the right file.

BLUETOOTH SPEAKER SETUP (SBox 1 only)

SBox can be used as a wireless speaker for a smart device like a phone or tablet. To use SBox as a speaker you must first initiate a bluetooth connection between the devices.

1. Turn SBox on.
2. Press MODE (17) until you hear 'Bluetooth'.
3. Turn on the bluetooth enabled device you wish to use as the audio source (ie phone, tablet, watch, etc.).
4. Make sure bluetooth is turned ON on your device and searching for bluetooth devices. Going about this is different on every device. So, you'll have to see the manual for your own device on how to do this.
5. SBox will be discoverable and show up as 'BT_SDK_0'. Connect to that. Once connected you will here a chime.
6. Play something from your audio source and you will hear it through the SBox speaker. Make sure to turn the volume up. The distance bluetooth will work varies and is dependent on the source device signal strength.

BLUETOOTH HEADPHONE PAIRING (SBox 2)

SBox 2 can connect to Bluetooth wireless headphones or a speaker.

1. Turn SBox on.
2. Turn on your Bluetooth device (headphones or speaker).
3. Begin the pairing on your other Bluetooth wireless device (headphones or speaker) per the instructions for that device.
4. Press and hold MODE (17) for a few seconds until you hear 'Bluetooth Pairing'. The flashlight will turn solid blue while pairing with your other device.
5. WAIT! DO NOT turn off the SBox. This could take up to a minute or two depending on the pairing speed of your connecting device.
6. Once connected you should hear "Bluetooth Connected" and the blue light will flash blue to indicate it is connected. The blue light will continue to flash as a confirmation it is paired with another device.

To stop pairing, just turn off the paired device OR press MODE (17) for a few seconds until you hear 'Bluetooth Disconnected'.

ANTENNA BYPASS (SBox 2)

You can bypass or 'cutoff' the antenna circuit, if you wish. This can be helpful to cut out a good amount of broadcast radio.

1. Turn SBox on.
2. Press and hold the "X" button (14) for a few seconds.
3. You will hear "Antenna Disengaged" to confirm. The "AM/FM" indicator will blink to indicate antenna is disengaged and solid when engaged.
4. To re-engage: press and hold the "X" button (14) for a few seconds. You will hear "Antenna Engaged" to confirm.

Note: This bypass will not cut out broadcast 100%. Depending where you are located near radio towers, some stations may be powerful enough to get through. But it does a pretty good job. As an added filter, we suggest utilizing a faraday wallet.

Random Station Hopping and Single Station Listening Options (SBox 2)

You can now scan frequency station frequencies at random, in addition to the tradition forward or backwards sequence.

1. Turn SBox on.
2. Press the "X" button (14).

To select a specific station to stay on scanning SBox must be paused (not currently scanning). While paused, press FORWARD (15) or REVERSE (11) to move up or down the frequencies by one station at a time. If the SBox is currently scanning, these buttons serve another purpose of adjusting speed. So, you have to pause the scan. To do so, just press SCAN (13) to pause the scan to select your station.
